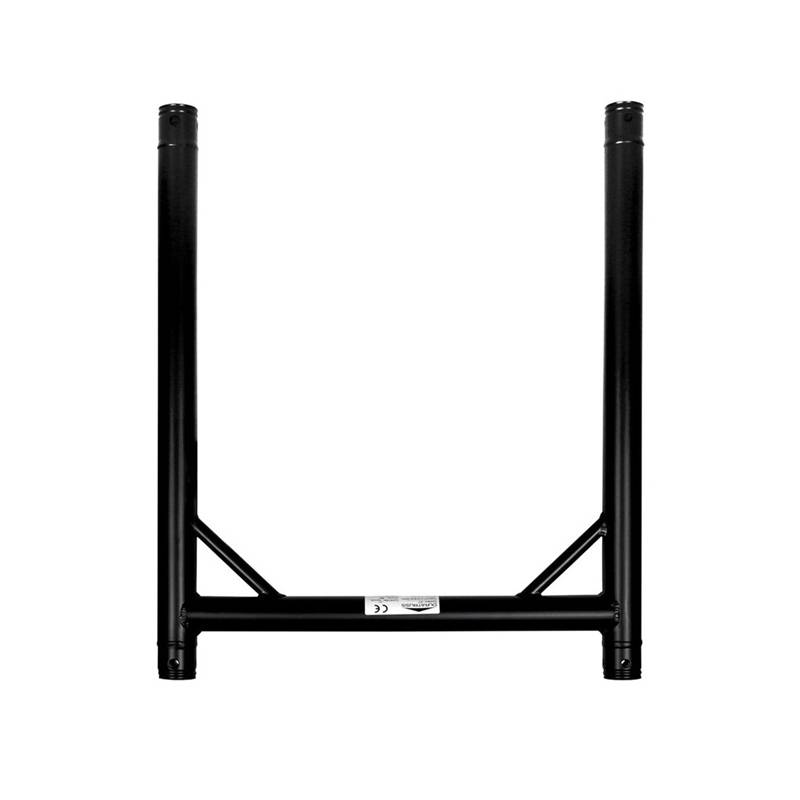

U-Frame 50 black

The U-Frame System is a portable solution for hanging fixtures without the use of a regualr truss system . Using several U-Frames one above the other you create an effective light column for events and shows. The U-Frame can also be used as a hanging version by using a top piece or coupler with cone.

The frame is also available in the size of 100cm width

Product Details:

– Main tube diameter: 50mm
– Wall thickness main tube: 2mm
– Bracing diameter: 20mm
– Wall thickness bracing: 2mm
– Alloy: EN-AW 6082 T6 (AlMgSi1)
– Connection: conical connectors with bolt and splint
– Delivery includes: 2 conical connectors, 4 bolts, 4 splints
– Produced according DIN 4112, DIN 4113-1
– Color: matt black coated
– Dimensions (W x H x D): 600 x 760 x 50 mm
– Weight: 2,3 kg
